This is the first post of 2008 and there are some updates in the treatment of our miniature marine engine. The dilution of old lubricants and accretions during nearly four months in a solvent bath was impressive.
Frequent changes of the solvent were required to keep the dilution process flowing. In the very first seconds of the new video you will be able to watch the amount of accretions that have been captured by the paper filter in the bottom of the bath. However, the solvent itself is not enough for deep cleaning. Mechanical cleaning using a variety of soft brushes is required to remove accretions that come in the form of thin film which is thick enough in this tiny engine to obstruct the moving parts!
On the other hand, in each cleaning session we try to release the moving parts, one step at a time. Despite that the pistons are working properly, it is still difficult to give a full turn to the flywheel. We are carefully inspecting the operation under the microscope in order to detect the cause of this malfunction however we still need a lot of work in removing every accretion from the interior, in order to be certain.
Finally, we tried to apply some air flow in order to check the condition of the valves. The good new is that the air can go through. Unfortunately, the gap between pistons and cylinders is too large, resulting in "blow by" or air-leakage (last part of the video). In other words, the cylinders cannot hold enough air pressure to drive the pistons.
We are currently examining a new method that can speed up the cleaning process. A successful treatment requires careful preparation, great patience, and most of all no assumptions or speculations. Stay in touch till the next update!
Wednesday, 19 March 2008
Tuesday, 30 October 2007
A Really Slow Process
It’s been a while since the last treatment update, but you have to keep in mind that conservation treatments can sometimes take long; actions based on rushed decisions can prove destructive for the object. Patience is essential for the conservator.
Over the past 6 weeks, the cleaning bath has continued in an effort to dissolve the old lubrication, without disassembling the miniature.
At the same time mechanical cleaning continued using custom made wooden tools, in order not to scratch the delicate metal surfaces. We also worked with a variety of fine paintbrushes from number 0 to 3, in an effort to remove the soluble accretions, a treatment that it is demonstrated in the video.
We discovered some interesting details about the miniature engine. Inspecting the object at high magnification revealed some minor construction faults and imperfections, visible only under the microscope! For example, you can see a mark just next to the right pin of the label (video 00:04), which has probably been caused from “hammering” the pin.
Finally, we managed to restore the engine’s function in manual mode. That means that the pistons are moving while turning the fly-wheel. You can have a look yourself in the video (00:32)!
However, there is still a lot of work to be done in order to make it possible for the engine to be operated by air. We still cannot guarantee that it will work, as the main priority of the conservation team is to ensure the good condition and safety of the objects, even if we have to classify them as static.
Nevertheless, the treatment continues, so stay in touch for the next update!
Over the past 6 weeks, the cleaning bath has continued in an effort to dissolve the old lubrication, without disassembling the miniature.
At the same time mechanical cleaning continued using custom made wooden tools, in order not to scratch the delicate metal surfaces. We also worked with a variety of fine paintbrushes from number 0 to 3, in an effort to remove the soluble accretions, a treatment that it is demonstrated in the video.
We discovered some interesting details about the miniature engine. Inspecting the object at high magnification revealed some minor construction faults and imperfections, visible only under the microscope! For example, you can see a mark just next to the right pin of the label (video 00:04), which has probably been caused from “hammering” the pin.
Finally, we managed to restore the engine’s function in manual mode. That means that the pistons are moving while turning the fly-wheel. You can have a look yourself in the video (00:32)!
However, there is still a lot of work to be done in order to make it possible for the engine to be operated by air. We still cannot guarantee that it will work, as the main priority of the conservation team is to ensure the good condition and safety of the objects, even if we have to classify them as static.
Nevertheless, the treatment continues, so stay in touch for the next update!
Tuesday, 11 September 2007
The cleaning is on!
After a small delay (we have several projects running simultaneously), today’s post is really special! There is a video available for streaming, showing the cleaning procedures that are currently taking place in the conservation lab!
The delicate nature of the model engine requires a gentle cleaning method. And first I decided to try a solvent bath. After disassembling the engine from its ivory plinth, I placed the object in a small container with I.M.S. and White spirit (1:1) and started monitoring it daily.
After two days, the object was examined under the microscope in order to detect if any of the old lubricants had dissolved. The bath had removed some surface dirt but had not done anything to the old lubricant inside the cylinders.
Therefore, we decided to try a different method; low-pressure solvent jet. A small airbrush was used to spray the solvent and dissolve the old lubrication. More like a shower than the bath I used a fine paint brush (size 0) to remove dirt and lubricants manually.
I applied the method to a small area, in order to evaluate its efficiency. As you can see in the video, the cleaning made it possible to move some parts of the engine. This is quite promising, but the model still requires a lot of work to operate again. Don’t forget that this engine was built to run on air supplied by a rubber bulb!
The treatment of the little engine requires constant use of stereo-microscope which is a quite challenging if not uncomfortable task. Our fine conservation tools look enormous and clumsy under a microscope and you have the impression that your hands are shaking horribly! However, it is an exciting project which pursues both creativity and skills.
The delicate nature of the model engine requires a gentle cleaning method. And first I decided to try a solvent bath. After disassembling the engine from its ivory plinth, I placed the object in a small container with I.M.S. and White spirit (1:1) and started monitoring it daily.
After two days, the object was examined under the microscope in order to detect if any of the old lubricants had dissolved. The bath had removed some surface dirt but had not done anything to the old lubricant inside the cylinders.
Therefore, we decided to try a different method; low-pressure solvent jet. A small airbrush was used to spray the solvent and dissolve the old lubrication. More like a shower than the bath I used a fine paint brush (size 0) to remove dirt and lubricants manually.
I applied the method to a small area, in order to evaluate its efficiency. As you can see in the video, the cleaning made it possible to move some parts of the engine. This is quite promising, but the model still requires a lot of work to operate again. Don’t forget that this engine was built to run on air supplied by a rubber bulb!
The treatment of the little engine requires constant use of stereo-microscope which is a quite challenging if not uncomfortable task. Our fine conservation tools look enormous and clumsy under a microscope and you have the impression that your hands are shaking horribly! However, it is an exciting project which pursues both creativity and skills.
Tuesday, 28 August 2007
Under the microscope
Finally, the time has come! I proudly present to you the pre-treatment digital photos, straight from the lab’s stereo-microscope! The miniature engine revealed some of its secrets as I was able to magnify it about 60x! The quality of Mr. Ewing’s work and his attention to detail at such a small scale are really incredible. I finally managed to see the reversing gear, the only part of the model which has screw threads.
A general inspection from every angle, shows dusty surfaces with minor iron corrosion, old lubrication mainly concentrated in the working parts of the model and some fibres (probably cotton).

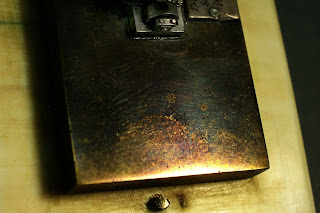

There is also an etched mark on the metal base caused by the acidic action of a fingerprint, a constant reminder to never touch an object with bare hands!
In conclusion, I am still amazed by the complexity of the model and its details, which are visible only under the microscope. I am more positive that we can effectively remove the old lubrication and dirt layers and make it run again. Have fun with the pictures, more about the methods we are going to use for the treatment, next week!
Monday, 20 August 2007
Models as Historical Objects
Hello again from the Science Museum’s Conservation lab! The pre-treatment sessions are almost finished and I will soon post some condition and detailed stereo-microscopy pictures and a general schedule for the forthcoming treatment!
But before all these, I would like to introduce you first to a scale world, the world of the historical working models of the Science Museum’s collections.
You maybe want to know why we treat the models as historical objects, with equal value to the full sized original.
.JPG)
Britain is probably the paradise for models in any possible range and kind; Ships, locomotives or model engines in our case. “Rainy afternoons” is probably the first thing that comes to mind, but actually the answer is “Industrial Revolution”.
James Watt and his fellow steam engineers, used to apply their ideas on models first, then to the real thing. Thus, at the first years of the Industrial Revolution, models saved money, time and lives! The practice of model trials is still continuing today. You can always make a theoretical model of an airplane using modern computer technology, but you will never now how it is going to behave in the air, if you don’t build a scale model and test it.
During the Victorian period, the model construction reached its zenith. Model societies were founded in this period and, beyond their practical use as test beds, scale models were used as promotions for new industrial and marine technology -- kinetic advertising before the age of television! Model ships and marine engines were on display in the entrances of big shipping companies or exhibitions like the Great Exhibition of 1851 in Crystal Palace. The public could see a model when the real thing was simply too big or too remote for viewing. With scale models, you could even display a complete fleet in a single exhibition room!
Models are in many ways the best and most lasting record of a ship, locomotive or engine. Full-sized machines could be scrapped for profit at the end of their useful lives, a period of a few decades at most. So it is not surprising that models are the surviving artefacts.
Finally, model engines and models in general, have always enchanted and inspired museum visitors.
According to our historic archives, the miniature engine is a work of W.J.M. Ewing, an engineer from Kenya. It seems that he was a specialist in creating small scale fully functional marine engines and locomotives. He spent several years making this amazing feat of micro-engineering which has 3 cylinders with 3/64ths of an inch bore each, and 1/16th of an inch stroke. They are proper double acting fully functional pistons! The engine also carries real valves, bearings, even balance weights! Another impressive part of the model is the reversing gear (Stephenson’s link motion) which gives to the little engine the ability to run in two directions. It is the only part that has threads. All the other bolts are so small, that they are friction fit only.
Those details are visible only under the microscope. Be patient for the next post, which will include high quality detailed pictures from every angle!
References:
Lavery, B., Stephens, S., (1995), Ship models, their purpose and development from 1650 to the present, London: Zwemmer, pp.7-8.
Dow, G., (1973), World locomotive models, Bath: Adams & Dart, pp. 5-8.
Science Museum, (1911), Catalogue of the Marine Engineering Collection in the Science Museum, South Kensington, London: H.M.S.O.
Images:
E. Tsolis (2007)
G. Dow (1973)
But before all these, I would like to introduce you first to a scale world, the world of the historical working models of the Science Museum’s collections.
You maybe want to know why we treat the models as historical objects, with equal value to the full sized original.
.JPG)
Britain is probably the paradise for models in any possible range and kind; Ships, locomotives or model engines in our case. “Rainy afternoons” is probably the first thing that comes to mind, but actually the answer is “Industrial Revolution”.
James Watt and his fellow steam engineers, used to apply their ideas on models first, then to the real thing. Thus, at the first years of the Industrial Revolution, models saved money, time and lives! The practice of model trials is still continuing today. You can always make a theoretical model of an airplane using modern computer technology, but you will never now how it is going to behave in the air, if you don’t build a scale model and test it.
During the Victorian period, the model construction reached its zenith. Model societies were founded in this period and, beyond their practical use as test beds, scale models were used as promotions for new industrial and marine technology -- kinetic advertising before the age of television! Model ships and marine engines were on display in the entrances of big shipping companies or exhibitions like the Great Exhibition of 1851 in Crystal Palace. The public could see a model when the real thing was simply too big or too remote for viewing. With scale models, you could even display a complete fleet in a single exhibition room!
Models are in many ways the best and most lasting record of a ship, locomotive or engine. Full-sized machines could be scrapped for profit at the end of their useful lives, a period of a few decades at most. So it is not surprising that models are the surviving artefacts.
Finally, model engines and models in general, have always enchanted and inspired museum visitors.
According to our historic archives, the miniature engine is a work of W.J.M. Ewing, an engineer from Kenya. It seems that he was a specialist in creating small scale fully functional marine engines and locomotives. He spent several years making this amazing feat of micro-engineering which has 3 cylinders with 3/64ths of an inch bore each, and 1/16th of an inch stroke. They are proper double acting fully functional pistons! The engine also carries real valves, bearings, even balance weights! Another impressive part of the model is the reversing gear (Stephenson’s link motion) which gives to the little engine the ability to run in two directions. It is the only part that has threads. All the other bolts are so small, that they are friction fit only.
Those details are visible only under the microscope. Be patient for the next post, which will include high quality detailed pictures from every angle!
References:
Lavery, B., Stephens, S., (1995), Ship models, their purpose and development from 1650 to the present, London: Zwemmer, pp.7-8.
Dow, G., (1973), World locomotive models, Bath: Adams & Dart, pp. 5-8.
Science Museum, (1911), Catalogue of the Marine Engineering Collection in the Science Museum, South Kensington, London: H.M.S.O.
Images:
E. Tsolis (2007)
G. Dow (1973)
Monday, 6 August 2007
Introduction
Hello, I am Stathis, the Metal Conservator of The Science Museum in London. We have made this blog to let you watch the treatment of one of the most spectacular and smallest artefacts of the Museum’s collections, a miniature working model of a ship’s engine which was built in 1936 and is no bigger than a 5 pence piece!
Full-sized engines of this type were enormous: the RMS Titanic had two of them, each larger than a double-decker bus. The triple-expansion engine was at the heart of shipping development from the 1880s to the 1920s. It was the ultimate in reciprocating steam power because it used the pressure of the steam three times over – triple expansion. Eventually the steam turbine and marine diesel took over. But when the Second World War broke out the Allies turned once again to the well proven and simply built triple-expansion engine. They had to build ships and engines faster than the U-boats were sinking them!
Our tiny triple-expansion engine works just like a full sized version, but on air rather than steam. Originally, the little engine was operated with a puff of air, coming from a rubber bulb. Unfortunately, rubber decays over time. Due to chemical deterioration, the bulb became hard to squeeze and the miniature did not operate for many years.
.jpg)
However, we never stopped thinking about possible solutions for putting the Museum’s smallest engine back in action! Besides, every working model has to run a few turns once in a while in order to stay operable. Our objective is to preserve the model engine in a good condition, running it periodically and also to give you the opportunity to witness its conservation through a series of posts in this blog. As the conservation treatment manages to make the model work again, we will prepare a video which will be available for streaming through this blog.
So what can you do?
You can join in by posting comments and questions. We would like to know if there are other miniature engines around! Feel free to ask questions about the conservation treatments or general information about the miniature model.
The project is challenging but promising. In the next post, we are going to do the pre-treatment documentation, using digital photography and stereomicroscopy.
References:
Griffiths, Denis, (1997), Steam at sea: two centuries of steam-powered ships, Conway Maritime, p. 116
Rowland, K., T., (1970), Steam at sea: a history of steam navigation, David & Charles, Newton Abbot, p. 201
Full-sized engines of this type were enormous: the RMS Titanic had two of them, each larger than a double-decker bus. The triple-expansion engine was at the heart of shipping development from the 1880s to the 1920s. It was the ultimate in reciprocating steam power because it used the pressure of the steam three times over – triple expansion. Eventually the steam turbine and marine diesel took over. But when the Second World War broke out the Allies turned once again to the well proven and simply built triple-expansion engine. They had to build ships and engines faster than the U-boats were sinking them!
Our tiny triple-expansion engine works just like a full sized version, but on air rather than steam. Originally, the little engine was operated with a puff of air, coming from a rubber bulb. Unfortunately, rubber decays over time. Due to chemical deterioration, the bulb became hard to squeeze and the miniature did not operate for many years.
.jpg)
However, we never stopped thinking about possible solutions for putting the Museum’s smallest engine back in action! Besides, every working model has to run a few turns once in a while in order to stay operable. Our objective is to preserve the model engine in a good condition, running it periodically and also to give you the opportunity to witness its conservation through a series of posts in this blog. As the conservation treatment manages to make the model work again, we will prepare a video which will be available for streaming through this blog.
So what can you do?
You can join in by posting comments and questions. We would like to know if there are other miniature engines around! Feel free to ask questions about the conservation treatments or general information about the miniature model.
The project is challenging but promising. In the next post, we are going to do the pre-treatment documentation, using digital photography and stereomicroscopy.
References:
Griffiths, Denis, (1997), Steam at sea: two centuries of steam-powered ships, Conway Maritime, p. 116
Rowland, K., T., (1970), Steam at sea: a history of steam navigation, David & Charles, Newton Abbot, p. 201
